Transforms¶

from dimos.msgs.geometry_msgs.Quaternion import Quaternion
from dimos.msgs.geometry_msgs.Transform import Transform
from dimos.msgs.geometry_msgs.Vector3 import Vector3

# Camera 0.5m forward and 0.3m up from base, no rotation
camera_transform = Transform(
    translation=Vector3(0.5, 0.0, 0.3),
    rotation=Quaternion(0.0, 0.0, 0.0, 1.0),  # Identity rotation
    frame_id="base_link",
    child_frame_id="camera_link",
)
print(camera_transform)

from dimos.msgs.geometry_msgs.Quaternion import Quaternion
from dimos.msgs.geometry_msgs.Transform import Transform
from dimos.msgs.geometry_msgs.Vector3 import Vector3

# Create two transforms
t1 = Transform(
    translation=Vector3(1.0, 0.0, 0.0),
    rotation=Quaternion(0.0, 0.0, 0.0, 1.0),
    frame_id="base_link",
    child_frame_id="camera_link",
)
t2 = Transform(
    translation=Vector3(0.0, 0.5, 0.0),
    rotation=Quaternion(0.0, 0.0, 0.0, 1.0),
    frame_id="camera_link",
    child_frame_id="end_effector",
)

# Compose: base_link -> camera -> end_effector
t3 = t1 + t2
print(f"Composed: {t3.frame_id} -> {t3.child_frame_id}")
print(f"Translation: ({t3.translation.x}, {t3.translation.y}, {t3.translation.z})")

# Inverse: if t goes A -> B, -t goes B -> A
t_inverse = -t1
print(f"Inverse: {t_inverse.frame_id} -> {t_inverse.child_frame_id}")

from dimos.msgs.geometry_msgs.Quaternion import Quaternion
from dimos.msgs.geometry_msgs.Transform import Transform
from dimos.msgs.geometry_msgs.Vector3 import Vector3

t = Transform(
    translation=Vector3(1.0, 2.0, 3.0),
    rotation=Quaternion(0.0, 0.0, 0.0, 1.0),
)
matrix = t.to_matrix()
print("4x4 transformation matrix:")
print(matrix)

from dimos.core.module import Module, ModuleConfig

class MyModuleConfig(ModuleConfig):
    frame_id: str = "sensor_link"
    frame_id_prefix: str | None = None

class MySensorModule(Module):
    config: MyModuleConfig

# With default config:
sensor = MySensorModule()
print(f"Default frame_id: {sensor.frame_id}")

# With prefix (useful for multi-robot scenarios):
sensor2 = MySensorModule(frame_id_prefix="robot1")
print(f"With prefix: {sensor2.frame_id}")

import time
import reactivex as rx
from dimos.core.core import rpc
from dimos.core.module import Module
from dimos.core.stream import In, Out
from dimos.core.coordination.blueprints import autoconnect
from dimos.core.coordination.module_coordinator import ModuleCoordinator
from dimos.msgs.geometry_msgs.Quaternion import Quaternion
from dimos.msgs.geometry_msgs.Transform import Transform
from dimos.msgs.geometry_msgs.Vector3 import Vector3
from dimos.msgs.tf2_msgs.TFMessage import TFMessage

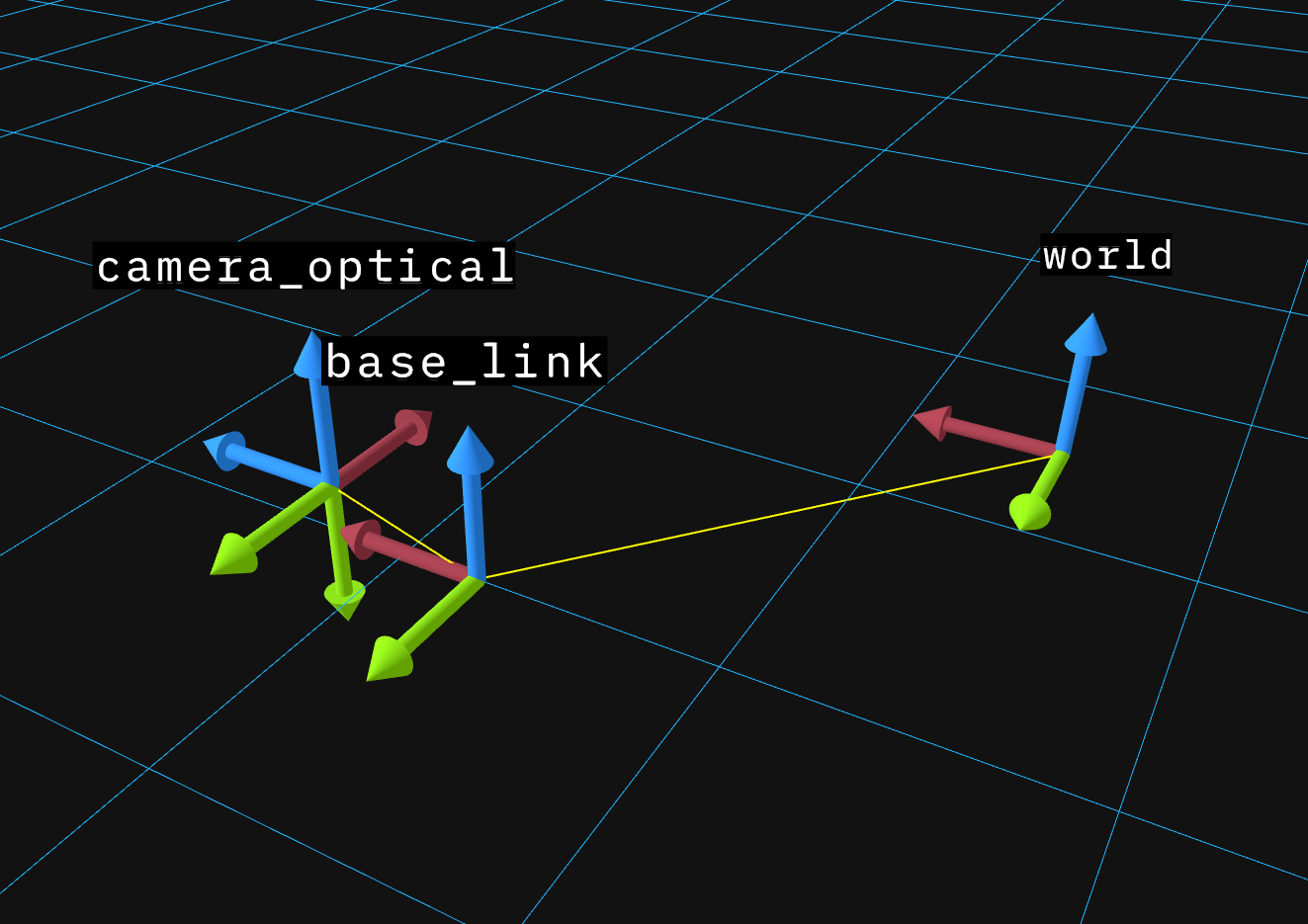

class RobotBaseModule(Module):
    """Publishes the robot's position in the world frame at 10Hz."""

    tf: Out[TFMessage]

    @rpc
    def start(self) -> None:
        super().start()

        def publish_pose(_):
            robot_pose = Transform(
                translation=Vector3(2.5, 3.0, 0.0),
                rotation=Quaternion(0.0, 0.0, 0.0, 1.0),
                frame_id="world",
                child_frame_id="base_link",
                ts=time.time(),
            )
            self.tf.publish(TFMessage(robot_pose))

        self.register_disposable(
            rx.interval(0.1).subscribe(publish_pose)
        )

class CameraModule(Module):
    """Publishes camera transforms at 10Hz."""

    tf: Out[TFMessage]

    @rpc
    def start(self) -> None:
        super().start()

        def publish_transforms(_):
            camera_mount = Transform(
                translation=Vector3(1.0, 0.0, 0.3),
                rotation=Quaternion(0.0, 0.0, 0.0, 1.0),
                frame_id="base_link",
                child_frame_id="camera_link",
                ts=time.time(),
            )
            optical_frame = Transform(
                translation=Vector3(0.0, 0.0, 0.0),
                rotation=Quaternion(-0.5, 0.5, -0.5, 0.5),
                frame_id="camera_link",
                child_frame_id="camera_optical",
                ts=time.time(),
            )
            self.tf.publish(TFMessage(camera_mount, optical_frame))

        self.register_disposable(
            rx.interval(0.1).subscribe(publish_transforms)
        )

class PerceptionModule(Module):
    """Receives transforms and performs lookups."""

    tf: In[TFMessage]

    @rpc
    def lookup(self) -> None:

        # Will pretty-print information on transforms in the buffer
        print(self.tfbuffer)

        direct = self.tfbuffer.get("world", "base_link")
        print(f"Direct: robot is at ({direct.translation.x}, {direct.translation.y})m in world\n")

        # Chained lookup - automatically composes world -> base -> camera -> optical
        chained = self.tfbuffer.get("world", "camera_optical")
        print(f"Chained: {chained}\n")

        # Inverse lookup - automatically inverts direction
        inverse = self.tfbuffer.get("camera_optical", "world")
        print(f"Inverse: {inverse}\n")

        print("Transform tree:")
        print(self.tfbuffer.graph())

if __name__ == "__main__":
    dimos = ModuleCoordinator.build(autoconnect(
        RobotBaseModule.blueprint(),
        CameraModule.blueprint(),
        PerceptionModule.blueprint(),
    ))

    # Give worker TF publishers a moment to populate the buffer before querying.
    time.sleep(2.5)

    dimos.get_instance(PerceptionModule).lookup()

    dimos.stop()

import time

from dimos.msgs.geometry_msgs.Quaternion import Quaternion
from dimos.msgs.geometry_msgs.Transform import Transform
from dimos.msgs.geometry_msgs.Vector3 import Vector3
from dimos.protocol.tf.tf import MultiTBuffer

tf = MultiTBuffer()

# Simulate transforms at different times
for i in range(5):
    t = Transform(
        translation=Vector3(float(i), 0.0, 0.0),
        rotation=Quaternion(0.0, 0.0, 0.0, 1.0),
        frame_id="base_link",
        child_frame_id="camera_link",
        ts=time.time() + i * 0.1,
    )
    tf.receive_transform(t)

# Query the latest transform
result = tf.get("base_link", "camera_link")
print(f"Latest transform: x={result.translation.x}")
print(f"Buffer has {len(tf.buffers)} transform pair(s)")
print(tf)
